Planning & Service

We and your BVC Agent will help you to work out the best installation possibilities for you or your customers. The determined costs include BVC central vacuum unit, piping system, mounting accessory and vacuuming equipment.

Planning & Service 1Planning support

We and your BVC Agent will help you to work out the best installation possibilities for you or your customers.

The determined costs include the costs of the BVC central vacuum unit, piping system, mounting accessory and vacuuming equipment.

We would like to support you from the planning to the completion of the project, in order to avoid faults during installation. Send your construction plans on a scale of 1:100 and soon you will receive an installation example. Do you have specific desires?

For example:

  • Is there a chimney or installation shaft you want to use?
  • Do you wish to surface-mount the pipes in the basement?
  • Do you plan to install an underfloor heating?
  • Do you need an inlet valve or a VROOM in the garage to vacuum the car?
  • Do you wish to install a VacPan or a VROOM in the kitchen?
  • What length of vacuum hose do you prefer? (Standard=9m)

Please send your construction plans before full construction begins to your BVC Agent.
If you do not know your BVC Agent please contact us. We are pleased to help you.

Installation examples for residential buildings

installation example BVC central vacuum cleaner

This is an installation example for a BVC central vacuum cleaner in a bungalow. By using a 9 m vacuum hose you need 4 inlet valves. We added a KitVac vacpan

Material document for Bungalow with 4 inlet valves and accessory set

1x BVC central vacuum cleaner C 600 SILVERLINE (680 Airwatt)
1x 7-piece accessories set with 9 m MULTI-FLEX vacuum hose with ON/OFF switch
4x BVC inlet valve, aluminium, white
1x pipe valve set
1x KitVac set white
4x Mounting bracket with pipe bend 90° short
4x Plaster guard
4x PP branch 45°, DN 50 mm, white
7x PP pipe bend 45°, DN 50 mm, white
14x PP pipe bend 90°, DN 50 mm, white
5x PP coupling, DN 50 mm, white
5x PP pipe DN50, length 50 cm, white
2x PP pipe DN50, length 100 cm, white
12x PP pipe DN50, length 200 cm, white
4x pipe bracket for HT pipe
2x Low voltage cable, 2-wired, length 15 m
1x Air exhaust grating, DN 100 mm, white
2x exhaust air elbow 87°
1x Exhaust air pipe 500 mm long
2x clamp DN 100 for exhaust air pipe
1x Original BVC exhaust muffler

Material costs in this example 2.282,84 Euro price (Suggested retail price (SRP) incl. 19 % VAT).

Planning & Service 2

This is an installation example for a BVC central vacuum cleaner in a classic single-family-house. By using a 9,0 meter vacuum hose it is sufficient to install only five inlet valves in the building. Another inlet valve in the garage helps you to keep the car and workshop clean.

Material document for single-family-house with 6 inlet valves and accessory set

1x BVC central vacuum cleaner S 600 SILVERLINE (700 Airwatt)
1x Original BVC exhaust muffler
1x 7-piece accessories set with 9m MULTIFLEX vacuum hose with ON/OFF switch and three integrated nozzles
6x BVC inlet valve, aluminium, white
6x Mounting bracket with pipe bend 90° short
2x PP pipe bend 30°, DN 50 mm, white
5x PP pipe bend 45°, DN 50 mm, white
5x PP pipe bend 45°, DN 50 mm, white
12x PP pipe bend 90°, long, DN 50 mm, white
5x PP coupling, DN 50 mm, white
5x PP pipe DN50, length 50 cm, white
6x PP pipe DN50, length 100 cm, white
12x PP pipe DN50, length 200 cm, white
6x Plaster guard
1x Air exhaust grating, DN 100 mm, white
3x Low voltage cable, 2-wired, length 15 m

Material costs in this example 2.671,15 Euro (Suggested retail price (SRP) incl. 19 % VAT).

Planning & Service 3

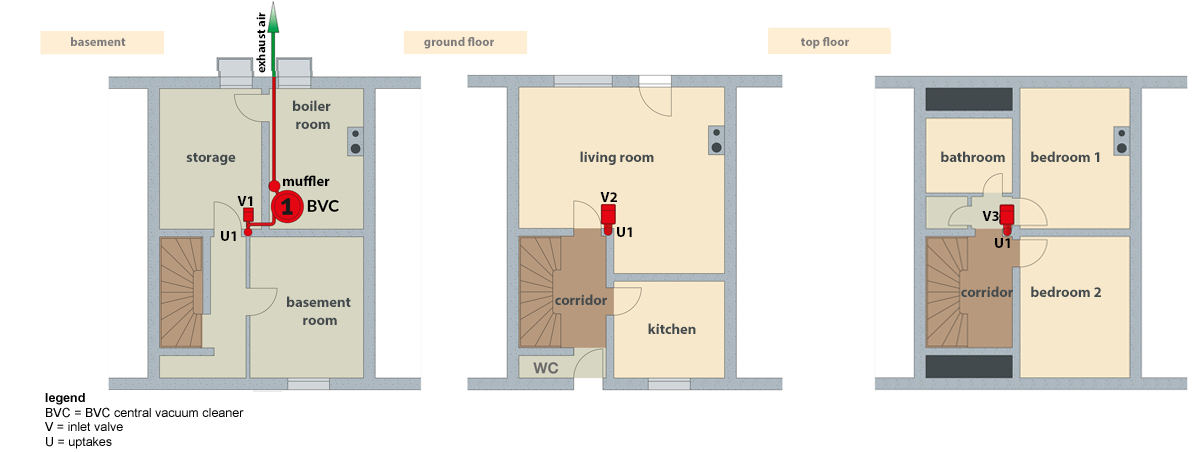

This is an installation example for a BVC central vacuum cleaner in a terraced house. By using a 9 meter vacuum hose it is suficient to install one inlet valve on each floor.

Material document for terraced house with 3 inlet valves and accessory set

1x BVC central vacuum cleaner C 600 SILVERLINE (680 Airwatt)
1x Original BVC exhaust muffler
1x 8-piece accessories set with 9 m SWIVEL vacuum hose with integrated potentiometer for electronic suction control
3x BVC inlet valve, aluminium, white
3x Mounting bracket with pipe bend 90° short
3x PP branch 45°, DN 50 mm, white
3x PP pipe bend 45°, DN 50 mm, white
1x PP pipe bend 90°, DN 50 mm, white
6x PP coupling, DN 50 mm, white
5x PP pipe DN50, length 50 cm, white
3x PP pipe DN50, length 100 cm, white
1x PP pipe DN50, length 200 cm, white
3x Plaster guard
1x Air exhaust grating, DN 100 mm, white
1x Low voltage cable, 2-wired, length 15 m

Material costs in this example 1.719,00 Euro price (Suggested retail price (SRP) incl. 19 % VAT).

Warranty service

Our customers can rely on consistently high quality.

20 year warranty on metal housing BVC central vacuum cleaner
10 year warranty on motor and electrical components
5 year warranty on original BVC inlet valves
4 year warranty on CORDURA motor protection filter
4 year warranty on MULTI-FLEX central vacuum hoses
3 years warranty on original BVC accessories

Planning & Service 4Service

If there is a defect in our products, our service technicians offer repair and/or replacement of the defective part. Please contact your BVC Agent. If you do not know your BVC Agent, please contact us.

Always check first if there is a local probem in the piping system or a malfunction of the inlet valve. Furthermore, please check your vacuum hose.
